Single Tier Mesh Lockers: Uses, Specs, and How to Choose the Right One
Single tier mesh lockers provide a full-height, walk-in storage compartment with a ventilated wire mesh door — one unobstructed space per column. They are the standard choice for storing bikes, industrial tools, hanging garments, or oversized gear in warehouses, apartment complexes, gyms, and changing rooms. At GoodLockers, we have manufactured and exported these units to clients in the USA, UK, Australia, and Singapore for over 18 years. In this guide, you will find standard dimensions, material grades, lock system options, and a step-by-step ordering process. Whether you are a facilities manager, procurement officer, or commercial contractor, this guide gives you everything you need to specify the right single tier mesh locker configuration.
What Makes Single Tier Mesh Lockers Different
Single tier mesh lockers stand as one full-height compartment per column — typically 7'6" (2,286mm) tall — giving users completely unobstructed walk-in access. This is the defining difference from double tier lockers, which split the same column into two stacked compartments, each reaching only about 3'9" high.
For large-item storage, that height difference is critical. Bikes, hanging garments, and construction equipment simply do not fit in a double tier unit. Therefore, single tier is the standard configuration for warehouses, residential storage rooms, and any facility managing oversized items.
Additionally, the open mesh locker construction allows full ventilation and 360° visibility. Supervisors can see locker contents at a glance without opening each unit. Furthermore, sprinkler water passes freely through the wire panels — a key compliance requirement under NFPA 13 for fire suppression systems.
Single Tier vs. Double Tier — Quick Comparison
| Feature | Single Tier | Double Tier |
|---|---|---|
| Height per compartment | ~7'6" (full height) | ~3'9" per level |
| Best for | Bikes, equipment, seasonal gear | Clothing, personal items |
| Lockers per floor area | Lower unit count | Double count, same footprint |
| Access type | Walk-in, fully unobstructed | Reach-in, size-restricted |
| Typical environments | Warehouse, apartment, industrial | School, gym, high-density |
Where Single Tier Mesh Lockers Are Used
Single tier mesh lockers work across a wide range of commercial and industrial environments. Each setting has distinct requirements — however, all of them benefit from the full-height access and visibility that single tier units provide.

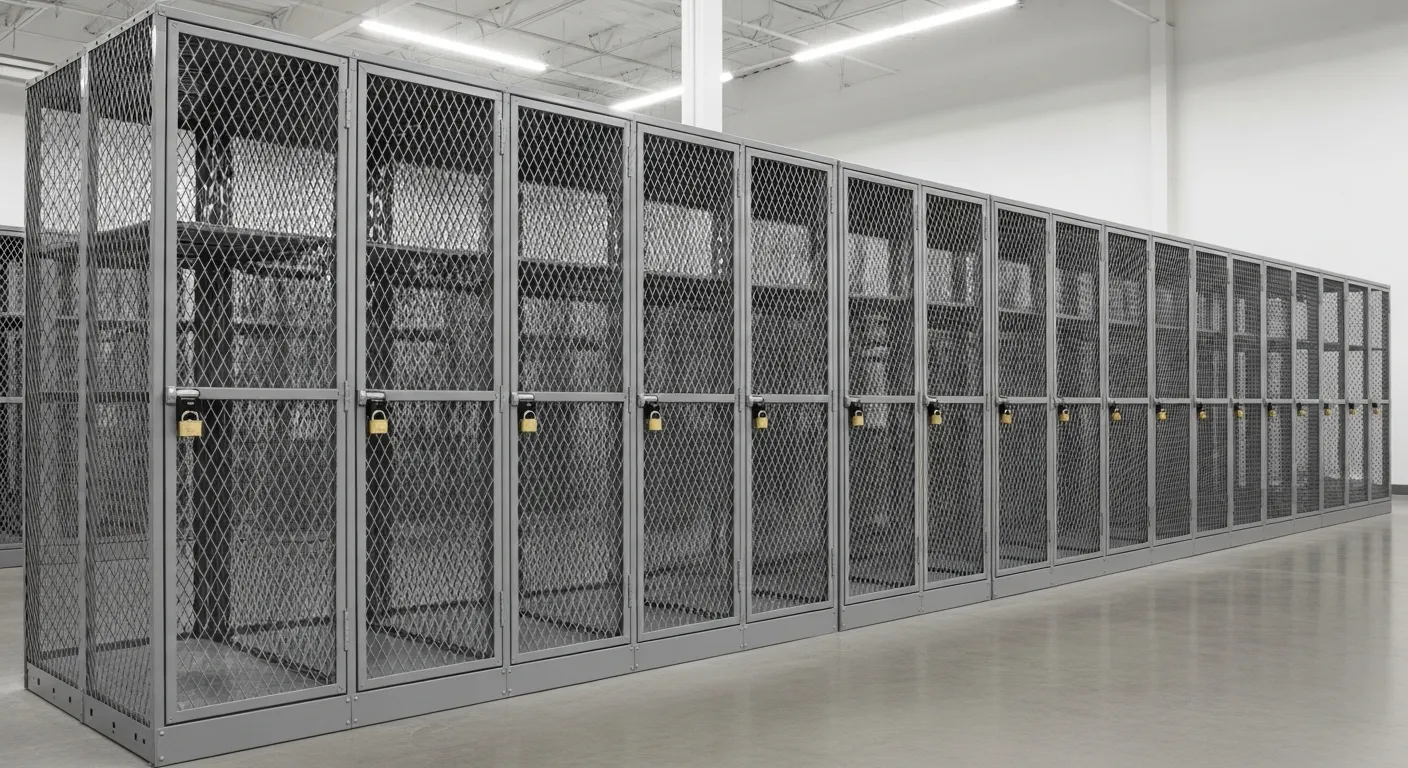

Warehouses and Industrial Facilities
Industrial environments require durable, visible, and code-compliant storage. Single tier wire mesh lockers store tools, PPE, and chemical safety gear effectively. The open construction satisfies ventilation requirements for chemical and flammable materials storage. Additionally, supervisors can verify contents without opening each unit — reducing inspection time on the floor. For heavy-use industrial zones, a 4-gauge welded wire mesh panel is the recommended specification.

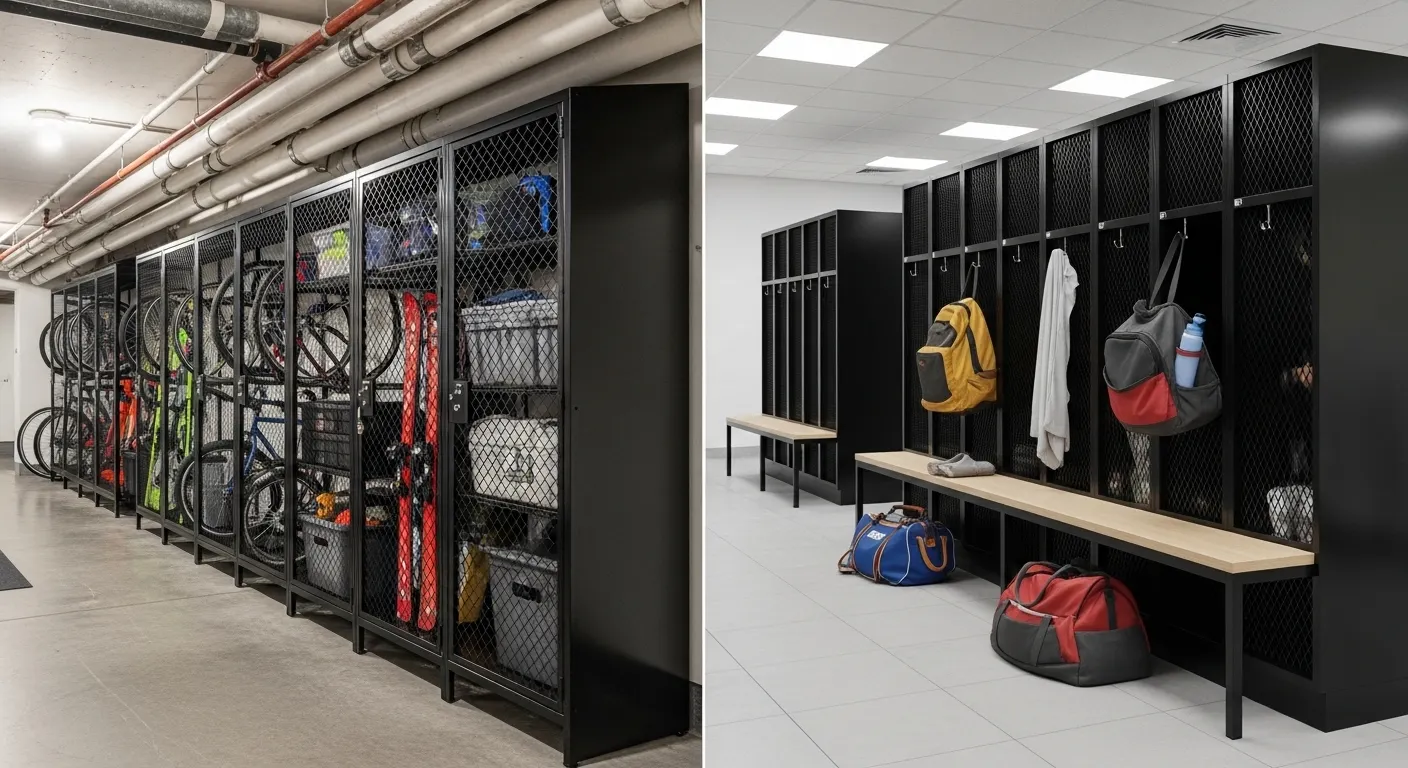

Apartment and Condo Buildings
Tenant storage has become a standard amenity in residential properties worldwide. A single tier mesh tenant storage locker gives residents a secure, dedicated space for bikes, seasonal items, and bulky furniture. Walk-in height is essential here — most residential tenants store bicycles and sporting equipment that a double tier unit cannot physically accommodate. The mesh construction also lets property managers perform visual security checks without master-key access.
Gyms and Changing Rooms
Changing room mesh lockers benefit directly from the open wire design. Airflow around wet clothing and damp gear prevents odor buildup and mold — a persistent complaint in sealed solid-door systems. Single tier configurations also accommodate full-length hanging garments, making them suitable for staff uniforms, wetsuits, and sports kit. In our experience fitting changing room projects, adequate ventilation is the first thing operators mention when replacing old solid lockers.
Construction Sites and Emergency Services
Wire mesh PPE lockers on construction sites allow rapid visual inspection before a shift starts. Workers can confirm helmets, harnesses, and safety boots are stored correctly in seconds. The modular add-on structure means locker banks can expand as site crews grow. Similarly, in fire stations and emergency depots, single tier mesh lockers allow critical gear — breathing apparatus, tactical vests, turnout gear — to be located and accessed at speed. Visibility here is a direct safety factor.

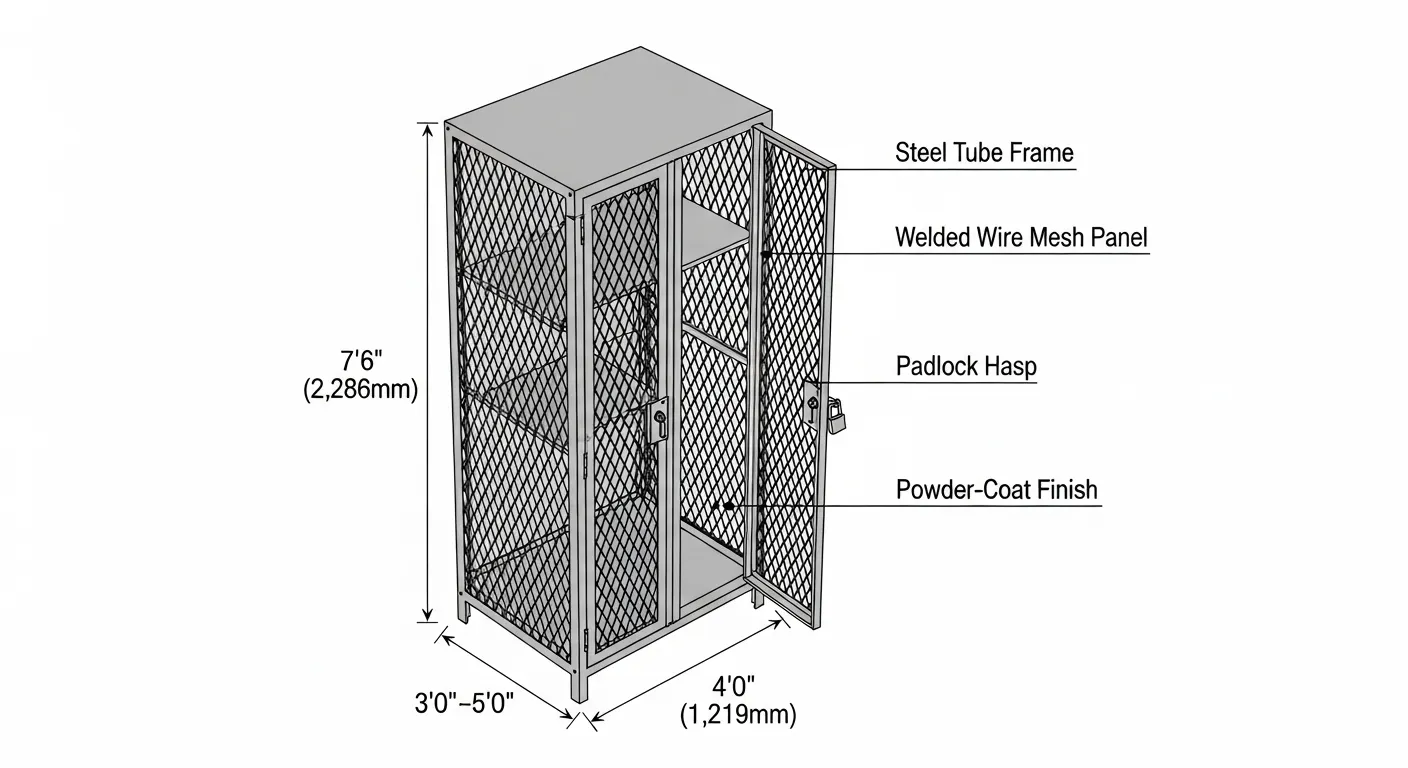

Standard Dimensions and Specifications
Standard single tier mesh lockers follow commercial and industrial storage dimensions that are consistent across manufacturers. Custom sizing is also available for non-standard ceiling heights or floor plan constraints.
| Specification | Standard Range |
|---|---|
| Height | 7'6" (2,286mm) / ~2,400mm metric |
| Width | 3'0"–4'0" (914mm–1,219mm) |
| Depth | 3'0"–5'0" (914mm–1,524mm) |
| Wire mesh gauge | 4-gauge (industrial) to 10-gauge (standard) |
| Mesh opening size | 2"×2" (50×50mm) welded |
| Frame material | 25×25mm square steel tube, T1.2mm |
| Standard finish | Powder-coated grey or black |
According to WireCrafters' tenant locker specifications, single tier units at full 7'6" height offer completely unobstructed storage capacity that double tier units cannot match for large-item applications. In our production process, we use 25×25×1.2mm steel tube frames with 50×50mm / T3.0mm welded wire panels — specifications refined through 18 years of international project delivery.
Add-Ons and Accessories to Specify at Order Stage
Several accessories expand the functionality of a basic single tier unit. Specifying these at the order stage prevents costly retrofits later.
- Ceiling panels — Prevent items from being passed over the top; improves anti-theft rating significantly
- Back and side panels — Fully enclose wall-facing or end-of-row installations
- Bottom panels — Seal the floor gap for storing smaller items without spillage
- Stand legs — Raise the unit for underfloor cleaning access
- Bench seat integration — Standard in gym and changing room configurations
- Custom RAL color finish — Available for branded facility projects
Material and Construction Quality — What to Look For
Not all single tier mesh lockers are built to the same standard. However, a few specific construction factors determine how long a unit will last and how well it resists forced entry.
Frame Type and Wire Construction
The frame should use welded steel tube, not angle iron. Steel tube provides a stronger modular joint and allows add-on units to bolt together without structural gaps. Therefore, always confirm the frame specification before ordering.
Wire construction is equally important. Welded wire mesh is stronger than woven wire. It resists distortion under pressure and is easier to service in the field. For industrial applications, specify 4-gauge welded wire. For commercial or residential environments, 8-gauge or 10-gauge is sufficient and reduces unit weight for easier installation.
Finish, Welding, and Corrosion Resistance
Powder-coated steel over a galvanized substrate provides the best long-term rust resistance. This matters most in humid environments — poolside changing rooms, outdoor-adjacent warehouses, and coastal facilities. Standard colors are grey and black. However, custom colors are available through OEM/ODM orders for facilities requiring branded storage.
All structural joints should be MIG welded, not bolted. Bolted joints weaken over time under repeated use. MIG-welded connections are permanent and maintain structural integrity across the unit's full lifespan. Additionally, the wire mesh locker frame quality is the single biggest factor in determining overall security rating — it pays to confirm the specification in writing before production begins.
Lock Options for Single Tier Mesh Lockers
Choosing the right lock depends on your user group and how the facility is managed. Single tier mesh lockers support four primary lock configurations.
| Lock Type | Best Environment | Security Level |
|---|---|---|
| Padlock hasp | Warehouse, industrial, residential | Medium — user supplies own padlock |
| Handle padlock | Residential, office | Medium — integrated, cleaner aesthetic |
| Digital keypad | Gym, corporate, high-turnover facility | High — code or card entry, no key loss |
| Anti-pry locking bar | Pharmaceutical, military, high-security industrial | Very high — full door-length steel bar |
For warehouse and industrial settings, a padlock hasp is the most practical option. It allows each worker or tenant to use their own padlock — reducing administrative overhead for facility managers. For gym or corporate environments, a digital lock eliminates key management entirely. For maximum security, such as pharmaceutical or military storage, an anti-pry full-length locking bar is the appropriate specification. According to Cisco-Eagle's tenant locker guide, lock selection is one of the top three specification decisions facility managers get wrong when ordering mesh lockers.
How to Specify and Order Single Tier Mesh Lockers
Follow these six steps before contacting a manufacturer. This process reduces back-and-forth during the quoting stage and shortens production lead time.
- Measure ceiling height and floor area. This confirms whether single or double tier fits, and how many columns the space can hold.
- Define what will be stored. Item size determines the required depth — 3', 4', or 5'. Bikes and bulky equipment need at least 4'0" depth.
- Choose wire gauge. Use 4-gauge for heavy industrial zones, 8-gauge for commercial, and 10-gauge for standard residential use.
- Select lock type. Base this on your user group and management preference — refer to the Lock Options table above.
- Confirm accessories. Ceiling panel, back panel, bench seat — specify at the ordering stage to avoid retrofit costs.
- Request a custom quote. Provide your dimensions, quantity, color preference, gauge, and lock type. GoodLockers accepts OEM/ODM orders with fully custom sizing and no minimum quantity restrictions on custom configurations.
Why Order Directly from a Manufacturer
Ordering directly from a single tier mesh locker manufacturer removes the distributor markup. It also opens access to custom sizing, gauges, and finishes that distributors cannot offer.
GoodLockers has manufactured commercial and industrial lockers for 18+ years. Our factory delivers projects to clients across the USA, UK, Canada, Australia, and Singapore. Here is what direct factory ordering provides:
- Direct factory pricing — No middleman markup on any order size
- Full OEM/ODM customization — Any dimension, gauge, color, or lock configuration available
- 5-year product warranty — Standard on all manufactured units
- On-site engineer support — Technical team available 7×24 hours from order through delivery
- Export logistics — Regular container shipments to North America, Europe, and Asia-Pacific
Furthermore, our production engineers review your facility drawings before manufacturing begins. This prevents specification errors that are expensive to correct after delivery. Request a free custom quote for your single tier mesh locker project →
Frequently Asked Questions
What is the standard height of a single tier mesh locker?
The standard height for a single tier mesh locker is 7'6" — approximately 2,286mm. In metric-specification markets, this is commonly ordered at 2,400mm. This full-column height allows walk-in access and accommodates bikes, hanging garments, and large equipment without restriction. Double tier lockers, by comparison, offer only 3'9" per compartment.
What is the difference between single tier and double tier mesh lockers?
Single tier mesh lockers provide one full-height compartment per column — typically 7'6" tall. Double tier lockers divide the same column into two stacked units, each approximately 3'9" high. Single tier is the correct choice when storing large or tall items that a double tier unit cannot accommodate. Double tier suits high-density personal storage where items are small, such as clothing and valuables.
What wire mesh gauge should I choose for industrial use?
For industrial environments — warehouses, manufacturing floors, and construction depots — specify 4-gauge welded wire mesh. This gauge provides the highest impact resistance and structural strength in heavy-use zones. For commercial environments like gyms and offices, 8-gauge is sufficient. Standard residential or tenant storage projects typically use 10-gauge wire, which reduces unit weight while maintaining adequate security.
Can single tier mesh lockers be customized in size or color?
Yes. Custom dimensions, non-standard depths, and custom powder-coat colors are available when ordering directly from a manufacturer. Standard finishes are grey and black. However, branded facility projects frequently specify custom RAL colors to match interior design requirements. OEM and ODM orders with specific dimension requirements are accepted without minimum quantity restrictions at GoodLockers.
Are single tier mesh lockers compliant with fire suppression systems?
Yes. The open wire mesh construction allows sprinkler water to pass directly through the locker panels into the compartment interior. This satisfies the requirements of NFPA 13, the standard for fire sprinkler installation. Solid-door lockers can block sprinkler coverage within the compartment. Therefore, wire mesh lockers are frequently required — or strongly recommended — in facilities with active overhead fire suppression systems.
Conclusion
Single tier mesh lockers are the correct solution when full-height access, ventilation, and visibility are priorities. They outperform double tier units for large-item storage in warehouses, apartment complexes, gyms, and industrial facilities. Three decisions drive a successful specification: wire gauge matching your environment, lock type matching your user group, and depth matching what will be stored. Ordering directly from a manufacturer — rather than a distributor — gives you better pricing, full customization, and engineering support from specification to delivery. Contact the GoodLockers team today to request a custom quote and get your project specified correctly the first time.
