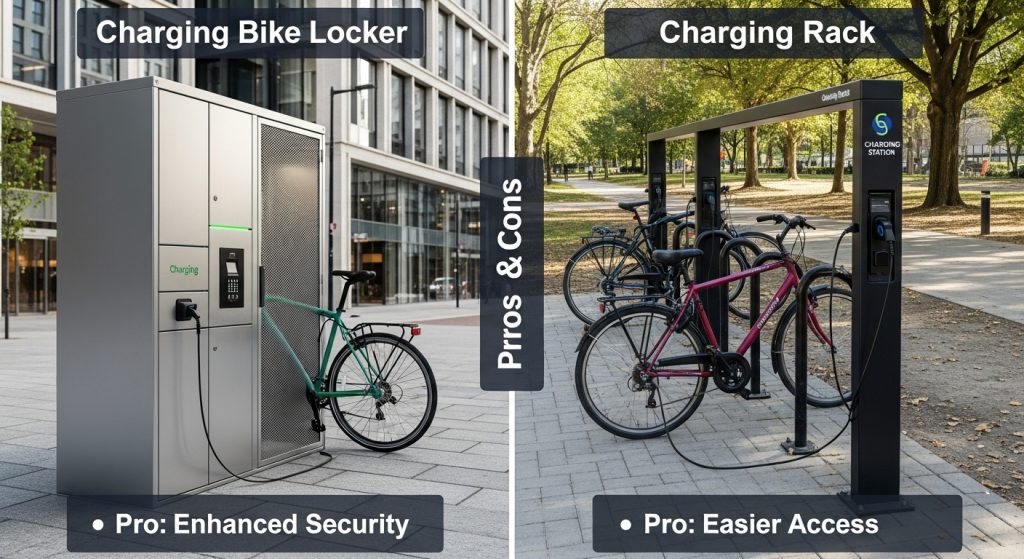

Charging Bike Locker vs Charging Rack: Pros & Cons

The charging bike locker vs charging rack debate is now the most important conversation in e-bike parking. As e-bikes become a primary mode of transport, their value has skyrocketed. You are no longer parking a simple bicycle. You are parking a high-value electric vehicle.

As a facility and security consultant, I've seen clients make costly errors. They treat a $5,000 e-bike with an $800 battery like a simple pedal bike. This is a critical mistake. It overlooks two new, massive risks: high-value theft and fire.

A charging bike locker is a private, high-security vault. It is designed to protect one or two e-bikes from everything: theft, vandalism, weather, and even fire. A charging bike rack is a convenient, scalable anchor point. It provides a place to lock your bike to and a place to get power.

One is an all-in-one, high-cost, maximum-security solution. The other is a low-cost, high-density solution that requires a secure environment. This guide will cover the pros and cons of each.

What Is a Charging Bike Locker?

A charging bike locker is a fully enclosed, heavy-duty box or cabinet. It is purpose-built to store one or two e-bikes securely.

Think of it as a private mini-garage for your e-bike. Its key features are:

• Total Enclosure: The bike is completely hidden from view.
• Heavy-Duty Lock: It has an integrated, high-security locking mechanism.
• Internal Power: It contains a standard (GFCI) power outlet inside.
• Durability: It is weatherproof and vandal-resistant.

The user rolls their bike in, plugs their own charger into the outlet, and locks the door. The bike, the battery, and the charger are all secured in one step.

What Is a Charging Bike Rack?

A charging bike rack is an open-air stand that provides both a locking point and a power source. Unlike a locker, it does not enclose the bike. Security is 100% reliant on the user's own lock.

These racks are not all the same. They fall into three main categories:

Type 1: Basic Rack with a Power Outlet

This is the simplest setup. It is a standard bike rack, like one seen in a bike locker vs bike rack comparison, installed next to a weatherproof electrical post. The user locks their bike to the rack and plugs their charger into the nearby outlet.

Type 2: Smart Rack with Charger Box

This is a more advanced solution. The rack itself has a secure arm to lock the bike. It also includes a small, separate lockbox. The user puts their own charger inside this lockbox to protect it from theft and weather.

Type 3: Docking Station

This is a high-tech, commercial-fleet solution. The rack is the charger. The user docks their bike onto a special connector. This is common for bike-share programs but rare for public use, as bikes and chargers are not standardized.

For this article, we will focus on Type 1 and 2, as they are the most common solutions for public and private facilities.

The Core Difference: Security vs. Scalability

The charging bike locker vs charging rack choice is a simple trade-off.

• A charging locker prioritizes maximum security and fire safety for a single user.
• A charging rack prioritizes maximum density and low cost for many users.

Your choice depends entirely on your environment. Do you need a vault in a public place? Or a power strip in a locked room?

Security Showdown: Protecting Your Investment

An e-bike is a prime target for thieves. They are not just after the bike; they are after the battery, which can be worth $500 to $1,000 alone.

Pros of a Charging Bike Locker

A locker is a "proactive" security system. It is designed to defeat thieves from the start.

• Total Concealment: This is its greatest strength. A thief cannot see the bike. They do not know if it is a $5,000 e-bike or a $200 pedal bike. This "out of sight, out of mind" principle is a massive deterrent.
• Integrated, Heavy-Duty Lock: The user's lock is irrelevant. The locker itself has a heavy-duty, integrated locking mechanism. A thief must defeat the locker, which requires loud, heavy tools.
• Component Protection: The entire bike is locked inside. This prevents the casual theft of wheels, seats, and, most importantly, the battery.
• Charger Protection: The user's $150+ charger is also locked safely inside.
• Weather Protection: The enclosed shell protects sensitive electronics, displays, and batteries from rain, snow, and sun. This is a form of asset protection.

Cons of a Charging Bike Locker

From a security perspective, there are virtually no downsides. The cons are all related to cost and space, which we will cover later.

Pros of a Charging Bike Rack

A rack is a "passive" security system. It relies on other factors.

• Good for Low-Risk Areas: In a visible, well-lit area, a rack can be a sufficient deterrent for casual theft.
• "Smart Racks" Add Security: The "Type 2" smart racks with secure charger boxes solve the problem of charger theft. Some also have steel locking arms that add a second layer of security.

Cons of a Charging Bike Rack

This is where the model breaks down in high-risk areas.

• Total Exposure: The bike is in plain view. A thief can instantly assess its value and see the lock you used. It is an advertisement for a high-value target.
• Battery Theft: Most e-bike battery locks are flimsy. They are designed to stop someone from grabbing the battery at a stoplight, not to defeat a determined thief.
• Charger Theft: With "Type 1" basic racks, the charger is completely exposed. A user must leave their expensive charger on the ground, where it can be stolen or damaged by rain.
• Weather Exposure: The bike is exposed to all elements. Rain and moisture can damage sensitive electronics and cause rust.
• Relies on the User's Lock: The entire security of the bike depends on the user. If they use a cheap cable lock, the bike is gone.

Security Winner: The Charging Bike Locker

It is not a contest. The charging bike locker offers comprehensive security for the bike, battery, and charger. A charging rack is only as secure as the user's lock and the room it is in.

The Elephant in the Room: Lithium-Ion Fire Safety

This is the most critical factor for any building manager. E-bike batteries store a massive amount of energy. If a battery is damaged, from a third-party, or uses a faulty charger, it can enter "thermal runaway." This is an explosive, self-sustaining fire that is extremely difficult to extinguish.

The Risk: Why Charging Is a Flashpoint

Thermal runaway is most likely to happen while charging. This is when the battery is under the most stress. Charging a single e-bike indoors can be a risk. Charging 20 e-bikes in one room is a major liability.

How Charging Lockers Handle Fire Risk

This is a key selling point for modern lockers. They are not just metal boxes; they are fire-safe cabinets.

• Fire-Rated Materials: Many lockers are built with fire-rated steel. They are designed to contain a battery fire for a set period (e.g., 30-60 minutes).
• Vented Systems: They have dedicated vents that can be ducted to the outside. This removes toxic smoke and heat from the building.
• Active Suppression: High-end models have thermal fuses. If the temperature inside the locker hits a danger point (like 165°F / 74°C), a fuse melts. This instantly cuts power to the outlet and can seal the vents.
• Alarms: Some are equipped with smoke detectors that can tie into the building's main alarm system.

A fire-safe locker is an active safety system. It is designed to contain a worst-case scenario, protecting the building and other bikes.

How Charging Racks Handle Fire Risk

They do not. A charging rack is a passive system. It offers zero fire containment.

The fire safety of a rack-based system depends entirely on:

1. The Room: The bike room must have sprinklers, excellent ventilation, and no flammable materials nearby.
2. The User: The building must trust that 100% of users are using certified, undamaged chargers and batteries. This is an impossible-to-enforce policy.
3. The Electricals: The charging outlets must be UL-listed and on GFCIs. This can prevent an electrical fire, but it will not stop a battery fire (thermal runaway) that has already started.

Fire Safety Winner: The Charging Bike Locker

The charging bike locker is the clear winner. For any property manager, corporation, or transit authority, the ability to contain a lithium-ion fire is a massive, liability-reducing benefit.

The User Experience: How They Work

What is it actually like to use one? The convenience factor is important.

The Charging Locker Experience

The user experience is simple and secure.

1. Unlock and open the locker door.
2. Roll the bike inside (this can be slightly awkward for some).
3. Take your personal charger out of your bag.
4. Plug the charger into the internal outlet and connect it to your bike.
5. Lock the door.

• Pros: Simple, one-step process. You know your bike, battery, and charger are all 100% safe.
• Cons: You must remember to bring your charger with you. The locker itself can be a bit tight to maneuver in.

The Charging Rack Experience

The experience varies by rack type.

• Basic Rack (Type 1):
  1. Find a spot.
  2. Lock your bike to the rack.
  3. Take your charger out.
  4. Plug it into the nearby post, leaving the charger exposed on the ground.
  • Pros: Fast. No need to fit a bike in a box.
  • Cons: High-anxiety experience. Users will not leave a $150 charger on the ground. This model is fundamentally flawed.
• Smart Rack (Type 2):
  1. Find a spot.
  2. Lock your bike to the rack.
  3. Open the separate, small charger lockbox.
  4. Put your charger inside and plug it in.
  5. Lock the charger box.
  • Pros: Solves the charger theft problem.
  • Cons: It is a clunky, multi-step process. The bike and battery are still exposed.

The Business Case: Cost vs. Scalability

This is where the charging rack has its biggest advantage.

Cost and Scalability of a Charging Bike Locker

A charging bike locker is a major capital investment.

• Cost: The bike locker vs bike rack cost is already high. When you add certified electricals and fire-safe materials, the price per locker can be thousands of dollars.
• Cost-Per-Bike: Since one locker serves one or two users, the cost-per-bike is extremely high.
• Scalability: This system is not scalable. Providing 50 charging lockers is a massive, expensive construction project.

Cost and Scalability of a Charging Bike Rack

A rack system is built for scalability.

• Cost: The rack itself is relatively inexpensive. The main cost is running the electrical conduit.
• Cost-Per-Bike: You can provide charging for 50 users for a fraction of the price of 50 lockers. The cost-per-bike is very low.
• Scalability: It is very easy to add more racks as demand grows.

The Cost Caveat: A Secure Room

The low cost of a rack system has one huge catch: it must be installed inside an already secure room.

A charging rack in a public, unsecured area is useless. Therefore, the true cost of a rack system is the cost of the racks plus the cost of the secure bike cage or room. This is a key factor in the bike locker vs bike cage price debate.

The "Third Way": Battery-Only Charging Lockers

A brilliant hybrid solution is emerging: a bank of small, battery-only lockers. This is a wall-mounted unit with 10-20 small compartments. Each one has a power outlet inside.

• How it works:
  1. The user parks their e-bike at any basic, low-cost bicycle locker or rack.
  2. They remove their battery.
  3. They place their battery and their charger inside one of the small, secure lockers.
• Pros:
  • Solves Battery/Charger Theft: This is the #1 goal.
  • Fire Safety: These small lockers can be fire-rated, containing the risk.
  • Scalable: Very space-efficient and cost-effective.
• Cons:
  • The bike itself is still exposed to theft and weather.

This is a fantastic compromise for secure, indoor environments.

Final Verdict: Which One Should You Choose?

The charging bike locker vs charging rack choice comes down to your environment and priorities.

You MUST Choose a Charging Bike Locker if:

• Security is your #1 priority.
• The parking is in a public, unsecured, or outdoor area (transit hubs, public garages, apartment complexes).
• Fire containment is a major concern (a legal or insurance requirement).
• You are providing a premium, high-value amenity for a few users.
• You need to protect the bike from weather.

You SHOULD Choose a Charging Bike Rack if:

• Scalability and cost are your #1 priorities.
• The parking is inside an already secure, access-controlled room (a locked bike cage, a secure employee-only garage).
• You need to provide charging for a high number of users (50+).
• Fire safety is handled by the room's main systems (sprinklers, ventilation).
• The bikes are not left overnight (e.g., an office, not an apartment).

My final recommendation is this: If you cannot secure the room, you must secure the bike. For any outdoor or public-access application, a charging locker is the only responsible choice. A high-density, secure indoor room, a charging rack is a smart, scalable solution.

For a complete overview of all your options, see our full bike locker comparison guide.
