Gym Phone Lockers: Biometric Facial Recognition
The Gym Phone Lockers: Biometric Facial Recognition system is a high-capacity, secure storage solution designed for modern fitness and corporate environments. This 56-door unit combines advanced security with space-saving efficiency through the following three core advantages:
-
Superior Security: Built with premium cold-rolled steel and patented 360° anti-pry electronic locks, the cabinet features 2 MP wide-dynamic cameras with liveness detection to prevent unauthorized access via photos or videos.
-
Optimized Design: The 735*250*1600 mm frame utilizes a four-column layout and a centralized control system, maximizing storage space while featuring rounded edges for user safety and impact resistance.
-
Efficient Management: Designed for long-term users, the system allows for quick "one-time authorization, repeat use," significantly reducing administrative labor through local data management and emergency override capabilities.
This smart locker is the ideal choice for facilities requiring a durable, maintenance-free, and keyless personal device storage solution.
-
Vieo
-
One-Stop Solution
-
Characters
-
Reference Project
-
Specification
Video for Cell Phone Locker
Let you know more information through video
Seek Solution?
Choose right products for your projects
What's Service SFS can offer you?
Over 15 years Steel Furniture experience.
Features of SFS-MSL-207 Gym Phone Lockers
Specification
-
56 compartments for phone storage. -
Mainly material is cold-rolled steel.
-
dual 2-megapixel wide-dynamic cameras
-
Equipped with liveness detection
-
Different color for option.
-
Assemble packing for delivery.
Details for Gym Phone Lockers
SFS-MSL-207
Dimensions, Material & Operation | Gym Phone Lockers Specifications
Dimensions
735mm (W) * 250mm (D) * 1600mm (H). 4-column layout with 56 individual compartments.
Material & Build
Constructed from high-grade cold-rolled steel. Reinforced door panels with rear steel ribs. Pivot-pin door hinges ensure smooth operation without misalignment or paint peeling. Rounded corner design prevents accidental scratches and impacts.
Recognition Technology
The system captures high-resolution facial images under natural light, building a mathematical model to match features against the registered database for instant access.
Operation Guide
Designed for long-term authorized users.
Access: Press "Access" -> Facial Scan -> Matching Door Opens -> Deposit/Retrieve item and close door.
Technical Parameters | Facial Recognition Performance
| Feature | Specification |
| Camera | Dual 2MP Industrial High-Definition Lens |
| Display | 8-inch IPS Screen (1240*800 resolution) |
| Recognition Speed | Registration & Identification < 1 second |
| Accuracy | False Acceptance Rate (FAR) < 0.01% |
| Power Input | AC86V ~ 264V with Short-circuit & Overload protection |
| Environment | Operating Temp: 0℃ to 45℃; Humidity ≤ 95% |
| Electronic Lock | DC12V; Rated for 500,000 cycles |
Design Features | Secure Gym Phone Lockers
Anti-Pry & Space Optimization: Features a patented 360-degree anti-pry electronic lock. The locking mechanism is isolated from the storage area to prevent tampering and maximize internal space. Includes a manual emergency override and integrated maintenance slot.
Centralized Management: All 56 doors are controlled via a single central panel. This eliminates the need for individual locks, significantly reducing labor costs and simplifying maintenance.
Advanced Biometrics: Equipped with a 2MP wide-dynamic camera and automatic fill light. It performs accurately in various lighting conditions and includes liveness detection to block unauthorized entry via photos or mobile videos.
Local System Control: Administrators can access a local menu to manage user data, audit opening logs, set system time, and perform emergency door releases without complex external software.
Industrial Stability: Self-developed control systems ensure 24/7 reliability. The optimized internal circuitry minimizes energy consumption while maintaining high-speed processing.

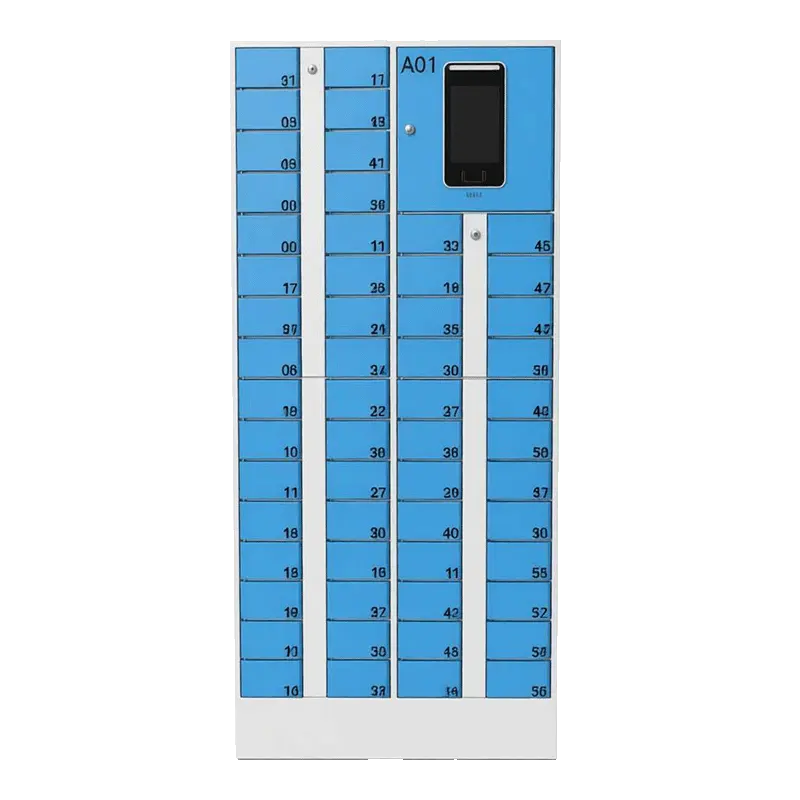

Product Gallery: Multi-compartment Face ID Locker Series

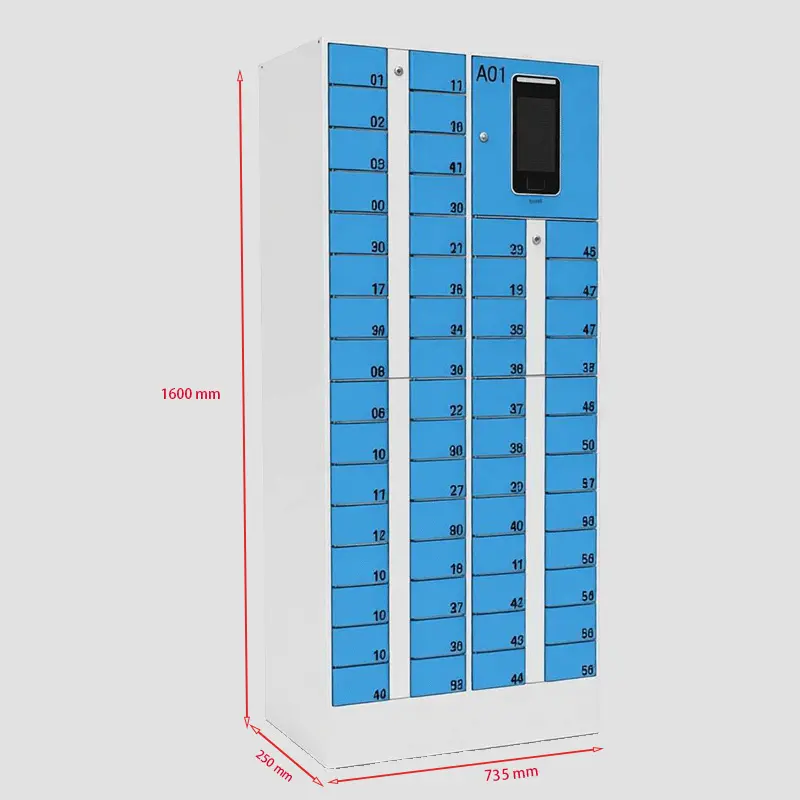

Size drawing:
Reference Project
More locker project for reference
Specification for SFS-MSL-207
| Product | Material | Size | Tiers |
| Gym Phone Lockers | Cold-Rolled Steel | 735*250*1600 mm | 16 Tiers |
| Live Body Detection | Doors | Charge | Lock |
| Yes | 56-doors | No | Yes |
| Recognition Rate | Surface Finish | Door thickness | Sloped-top design |
| Less than 1 second | Powder coating | 0.8mm | No |
| Lock type | Color | Package | Customized |
| 360-degree anti-tampering, anti-card-insertion electronic control lock | Blue | Assemble packing | Yes |
Contact Us
Free Sample Available For your Project
Subject : Gym Phone Lockers: Biometric Facial Recognition
FAQ
Is the facial recognition secure against photo fraud?
Yes, our gym phone lockers use liveness detection to distinguish real faces from photos or videos, ensuring maximum security.
What happens to the lockers during a power failure?
The system includes a manual emergency opening function. Administrators can access the maintenance slot to open any door manually.
Can the 56-door locker accommodate large smartphones?
Absolutely. Each compartment is designed to fit modern large-screen smartphones and portable power banks comfortably.
Does the locker require a constant internet connection?
No. The management and recognition processes are handled locally on the built-in controller for faster response and better privacy.
Are the lockers safe for users in high-traffic areas?
Yes, the rounded door edges and smooth pivot hinges are specifically designed to prevent injuries in busy environments.
Is there a centralized management system?
Yes, administrators can manage the entire locker system through a centralized control panel.
